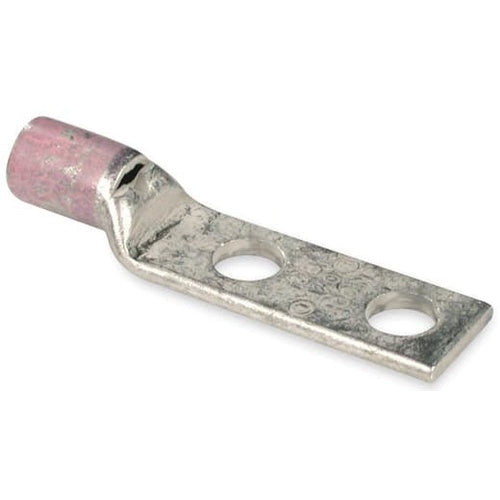

T&B 256-30695-886 Copper Tin Plated 2-Hole Lug Standard Barrel 1/2" 3/8B Pink

Product Specifications

• UPC: 78621089675
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 42
• Material: High Conductivity Electro Tin Plated Wrought Copper
• Overall Length: 3.78 Inch
• Approval: UL, CSA
• Additional Information: Includes Peep Hole
• Catalog Number: 256-30695-886
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1/0 AWG (Code)
• Barrel Type: Standard, Straight
• Pad Size: 2.83 Inch Length x 0.75 Inch Width x 0.13 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #1 FLEX 225/24, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE COLOR CODE PINK, DIE CODE 42
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Copper Material; Pink Color; 3.78 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 1/0 AWG (Code) Conductor Size; 1/2 Inch Stud Size; 42 Die Index; 2.83 Inch Length X 0.75 Inch Width X 0.13 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Standard, Straight Barrel Type; Includes Peep Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210896755
• SKU Name: t&b 25630695886
