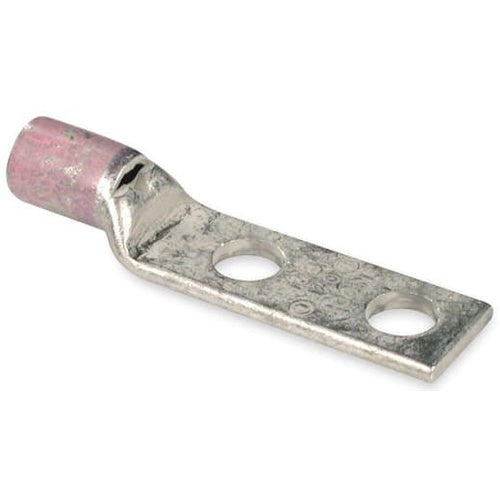

T&B 256-30695-898 Copper Tin Plated 2-Hole Lug Standard Barrel 700 3/8B Pink

Overview

T&B 256-30695-898 Copper Tin Plated 2-Hole Lug Standard Barrel 700 3/8B Pink

Product Specifications

• UPC: 78621089676
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 INCH
• Stud Size: 3/8 INCH
• Color: PINK
• Die Index: 99
• Material: ELECTROLYTIC TIN PLATED WROUGHT COPPER
• Overall Length: 4 INCH
• Approval: UL, CSA
• Catalog Number: 256-30695-898
• Brand Name: Color-Keyed[R]
• Model: 256-30695
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 700 KCMIL (CODE), 500/535 (FLEX), 132/24 (FLEX)
• Barrel Type: STANDARD
• Pad Size: 2-1/16 INCH L X 1-25/32 INCH W X 9/32 INCH THK
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 700 KCMIL, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE COLOR CODE PINK, DIE CODE 99
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Wrought Copper Material; Pink Color; 4 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 700 kcmil (Code), 500/535 (Flex), 132/24 (Flex) Conductor Size; 3/8 Inch Stud Size; 99 Die Index; 2-1/16 Inch L X 1-25/32 Inch W X 9/32 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Standard Barrel Type; COLOR-KEYED[R] Brand; 256-30695 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210896762
• SKU Name: t&b 25630695898
