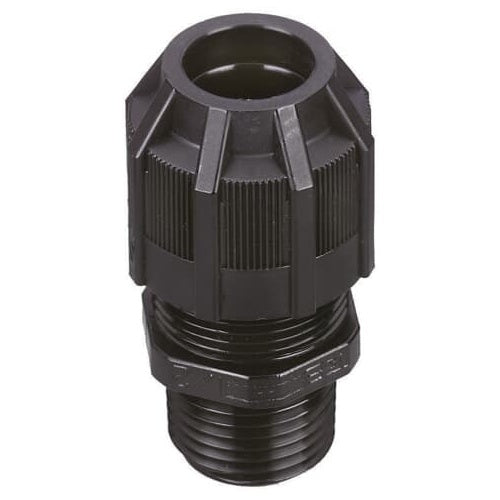

T&B 2942NM 1" Nylon Ranger Cord Connector .700-.950

Overview

High-performance design for enhanced reliability, Weather-resistant construction for long-lasting durability, Easy installation process to minimize downtime

Product Specifications

• UPC: 78621079748
• Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair
• Additional Information: RoHS Compliant; Operating Temperature -34 to 105 Deg C
• Catalog Number: 2942NM
• Brand Name: Ranger[R]
• Type: Straight, Strain Relief
• Thread Size: 1 Inch
• Material: Black Nylon (Body), Rubber (Bushing)
• Cord Size: 0.7 to 0.95 Inch
• Size: 1-43/64 Inch Diameter
• Approval: UL 514B, CSA C22.1/C22.2-18.3, NFPA 70, CG293 (US)
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CONNECTOR, STRAIGHT, 1 INCH NPT THREAD, CABLE RANGE 0.700 INCH/17.8MM TO 0.950 INCH/24.1MM, IP65 RATING, UV RESISTANT POLYAMIDE 6.6 BODY, BLACK
• Category: Cable & Cord Grips
• Full Technical Description: Straight, Strain Relief Type; Black Nylon (Body), Rubber (Bushing) Material; 1-43/64 Inch Diameter Size; UL 514B, CSA C22.1/C22.2-18.3, NFPA 70, CG293 (Us) Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1 Inch Thread Size; 0.7 to 0.95 Inch Cord Size; RANGER[R] Brand; RoHS Compliant; Operating Temperature -34 to 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210797489
• SKU Name: T&B 2942NM
