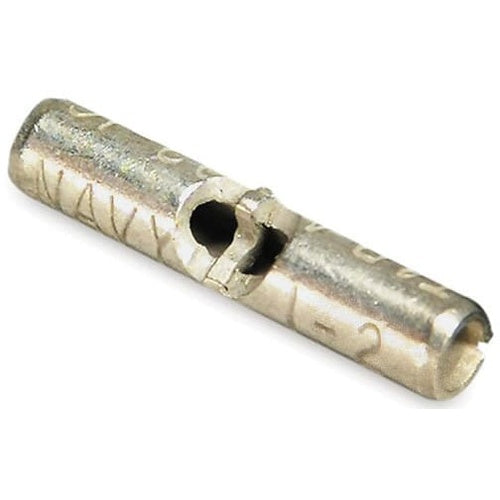

T&B 2D-8 Non-Insulated Butt Splice 9-7 Awg 1.03 Len

Overview

T&B 2D-8 Non-Insulated Butt Splice 9-7 Awg 1.03 Len

Product Specifications

• UPC: 78621080010
• Color: Metallic
• Material: Electro Tin Plated Copper
• Temperature Rating: 150 Deg C
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Catalog Number: 2D-8
• Brand Name: Sta-Kon
• Type: Butt
• Voltage Rating: 600 Volt
• Length: 1.03 Inch
• Barrel Outer Diameter: 0.28 Inch
• Conductor Size: 9 to 7 AWG
• Insulation Type: Non-Insulated
• Catalog Description: NON-INSULATED BUTT SPLICE, LENGTH 0.99 INCH, WIDTH 0.27 INCH, WIRE RANGE 10-8 AWG, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Metallic Color; 1.03 Inch; UL, CSA Approval; 600 Volt Voltage Rating; 150 Deg C Temperature Rating; 250 Per Outer Pack Standard Package; 9 to 7 AWG Conductor Size; Non-Insulated Insulation Type; 0.28 Inch Barrel Outer Diameter
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210800103
• SKU Name: t&b 2d8
