T&B 2RC10X ExPanduited Insulated Vinyl Butt Splce, 12-10 Le

Overview

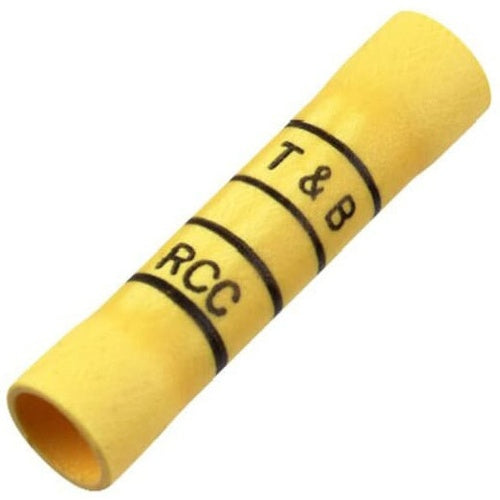

T&B 2RC10X Expanded Insulated Vinyl Butt Splce, 12-10 Le

Product Specifications

• UPC: 78621080721
• Insulation Type: Vinyl Insulated
• Color: Yellow
• Material: Electro Tin Plated Copper
• Temperature Rating: 105 Deg C
• Standard Package: 250 per Outer Pack
• Approval: UL 94, CSA
• Additional Information: Applicable Standard MIL-T-7928
• Catalog Number: 2RC10X
• Brand Name: Sta-Kon
• Type: Butt, Expanded Entry
• Voltage Rating: 600 Volt
• Length: 1.31 Inch
• Barrel Outer Diameter: 0.31 Inch
• Maximum Insulation Diameter: 0.25 Inch
• Conductor Size: 12 to 10 AWG
• Catalog Description: EXPANDED VINYL-INSULATED BUTT SPLICE, LENGTH 1.31 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION DIAMETER .250, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, MINI-PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Butt, Expanded Entry Type; Electro Tin Plated Copper Material; Yellow Color; 1.31 Inch; 0.25 Inch Max. Insulation Diameter; UL 94, CSA Approval; 600 Volt Voltage Rating; 105 Deg C Temperature Rating; 250 Per Outer Pack Standard Package; 12 to 10 AWG Conductor Size; Vinyl Insulated Insulation Type; 0.31 Inch Barrel Outer Diameter; Applicable Standard mil-T-7928
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210807218
• SKU Name: t&b 2rc10x
