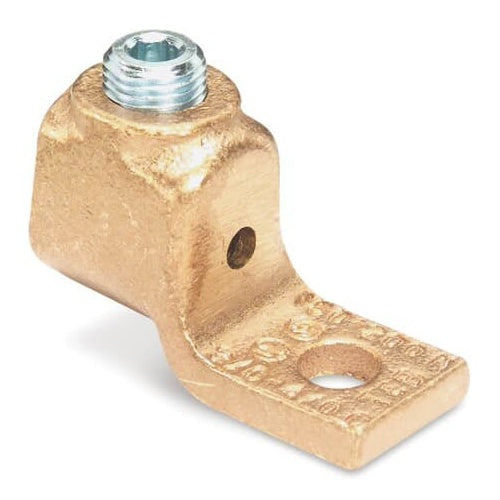

T&B 31005AL Locktite Copper 1-Hole Flag Type Lug 8-4

Product Specifications

• UPC: 78621086983
• Screw Type: Filister Head
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 5/8 Inch L x 1/2 Inch W x 1/8 Inch Thk
• Stud Size: 1/4 Inch
• Overall Length: 1-1/8 Inch
• Approval: UL, CSA
• Catalog Number: 31005AL
• Brand Name: LOCKTITE[R]
• Type: Flag
• Number Of Conductors: 1
• Minimum Conductor Size: 8 AWG
• Maximum Conductor Size: 4 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER ONE-HOLE FLAG-TYPE LUG FOR CONDUCTOR RANGE 8-4 AWG
• Category: Large Terminals & Connectors
• Full Technical Description: Flag Type; Copper Material; 1-1/8 Inch Overall Length; 8 AWG min. Conductor Size; 4 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 5/8 Inch L X 1/2 Inch W X 1/8 Inch Thk Pad Size; 1 Pad Hole(S); Straight Pad Type; Filister Head Screw Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210869834
• SKU Name: t&b 31005al
