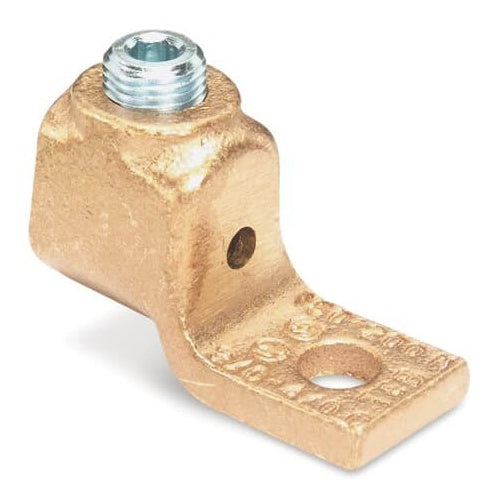

T&B 31009 Locktite Copper 1-Hole Lug 36527

Overview

T&B 31009 Locktite Copper 1-Hole Lug 36527

Product Specifications

• UPC: 78621031009
• Screw Type: Hex Socket
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 1 Inch Length x 13/16 Inch Width x 1/4 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 1-15/16 Inch
• Approval: UL, CSA
• Additional Information: Used On Copper Conductor (600 Volt)
• Catalog Number: 31009
• Brand Name: Blackburn
• Type: Standard Saddle
• Number Of Conductors: 1
• Minimum Conductor Size: 1 AWG
• Maximum Conductor Size: 2/0 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER ONE-HOLE LUG FOR CONDUCTOR RANGE #1 - 2/0 AWG OR 100 - 125 NAVY. LENGTH 1-15/16 INCH, WIDTH 13/16 INCH, PAD THICKNESS 1/4 INCH. PAD LENGTH 1 INCH. BOLT SIZE 3/8 INCH, HEIGHT 1-3/16 INCH.
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Saddle Type; Copper Material; 1-15/16 Inch Overall Length; 1 AWG min. Conductor Size; 2/0 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1 Inch Length X 13/16 Inch Width X 1/4 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Hex Socket Screw Type; LOCKTITE[R] Brand; Used on Copper Conductor (600 Volt)
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210310091
• SKU Name: t&b 31009

Resources

• Manufacturer Spec Sheet
