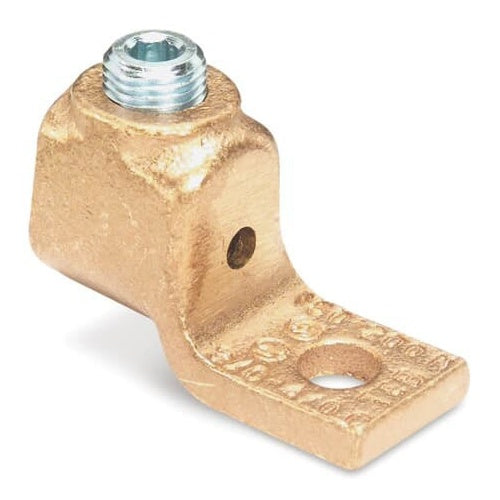

T&B 31011 Locktite Copper 1-Hole Lug 2/0-4/0

Overview

T&B 31011 Locktite Copper 1-Hole Lug 2/0-4/0

Product Specifications

• UPC: 78621031011
• Screw Type: Hex Socket
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 1-1/4 Inch Length x 1 Inch Width x 9/32 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 2-3/8 Inch
• Approval: UL, CSA
• Additional Information: Used On Copper Conductor (600 Volt)
• Catalog Number: 31011
• Brand Name: Blackburn
• Type: Standard Saddle
• Number Of Conductors: 1
• Minimum Conductor Size: 2/0 AWG
• Maximum Conductor Size: 4/0 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER ONE-HOLE LUG FOR CONDUCTOR RANGE 2/0 - 4/0 AWG OR 150 - 200 NAVY. LENGTH 2-8/8 INCH, WIDTH 1 INCH, PAD THICKNESS 1/4 INCH. PAD LENGTH 1-1/4 INCH. BOLT SIZE 3/8 INCH, HEIGHT 1-13/32 INCH.
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Saddle Type; Copper Material; 2-3/8 Inch Overall Length; 2/0 AWG min. Conductor Size; 4/0 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1-1/4 Inch Length X 1 Inch Width X 9/32 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Hex Socket Screw Type; LOCKTITE[R] Brand; Used on Copper Conductor (600 Volt)
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210310114
• SKU Name: t&b 31011

Resources

• Manufacturer Spec Sheet
