Overview

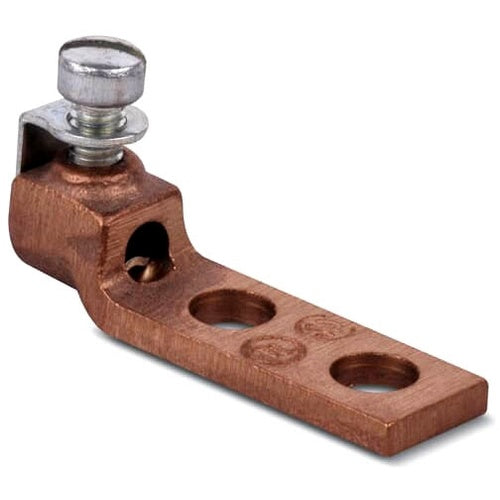

T&B 32011 Locktite Copper 2-Hole Lug 2/0-4/0

Product Specifications

• UPC: 78621032011
• Screw Type: HEX HEAD
• Material: COPPER
• Number Of Pad Holes: 2
• Pad Size: 2 INCH L X 1 INCH W X 9/32 INCH THK
• Stud Size: 3/8 INCH
• Overall Length: 3-1/8 INCH
• Approval: UL, CSA
• Catalog Number: 32011
• Brand Name: LOCKTITE
• Type: LONG TONGUE
• Number Of Conductors: 1
• Minimum Conductor Size: 2/0 AWG
• Maximum Conductor Size: 4/0 AWG
• Conductor Material: COPPER
• Pad Type: STRAIGHT
• Catalog Description: LOCKTITE COPPER TWO-HOLE LUG FOR CONDUCTOR RANGE 2/0 TO 4/0
• Category: Large Terminals & Connectors
• Full Technical Description: Long Tongue Type; Copper Material; 3-1/8 Inch Overall Length; 2/0 AWG min. Conductor Size; 4/0 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 2 Inch L X 1 Inch W X 9/32 Inch Thk Pad Size; 2 Pad Hole(S); Straight Pad Type; Hex Head Screw Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210320113
• SKU Name: t&b 32011
