T&B 321-TB 3/8" Tite-Bite Connector 90 Deg

Overview

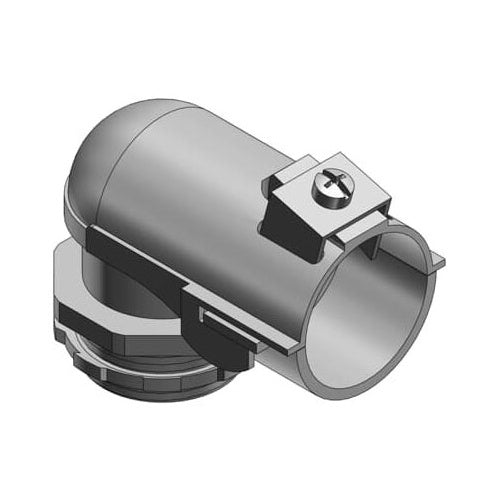

T&B 321-TB 3/8" Tite-Bite Connector 90 Deg

Product Specifications

• UPC: 78621000321
• Installation: (1) Screw, Saddle
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Steel
• Standard Package: 100 per Outer Pack
• Approval: UL, CSA
• Additional Information: Color Metallic
• Catalog Number: 321-TB
• Brand Name: T&B
• Type: 90 Degree
• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 0.437 to 0.656 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, 90 DEGREE BEND, TRADE SIZE 3/8 INCH, KNOCKOUT SIZE 1/2 INCH, CABLE RANGE 0.470 TO 0.660 INCH, MALLEABLE IRON WITH ZINC PLATING
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Electro Zinc Plated Steel Material; (1) Screw, Saddle Installation; UL, CSA Approval; 100 Per Outer Pack Standard Package; 3/8 Inch Trade Size; 1/2 Inch Knockout Size; 0.437 to 0.656 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; TITE-BITE[R] Brand; Color Metallic
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210003214
• SKU Name: t&b 321tb

Resources

• Manufacturer Spec Sheet
