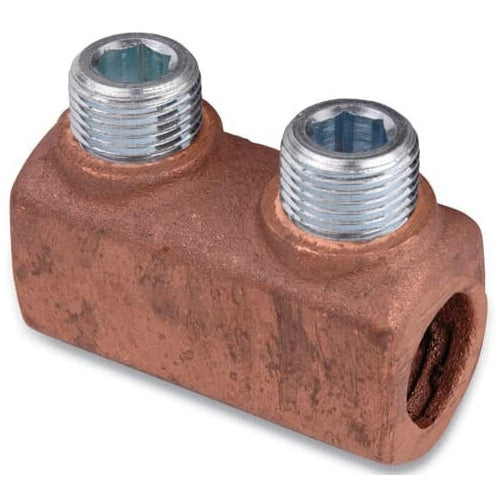

T&B 32517 Locktite Copper 2-Way Conductor 500-750

Overview

T&B 32517 Locktite Copper 2-Way Conductor 500-750

Product Specifications

• UPC: 78621032517
• Size: 3-1/8 INCH L X 1-1/2 INCH W X 2-1/16 INCH H
• Insulation Type: NON INSULATED
• Approval: UL, CSA
• Additional Information: INCLUSION LOCK WASHER
• Catalog Number: 32517
• Brand Name: LOCKTITE.
• Type: IN LINE
• Voltage Rating: 600 V
• Minimum Conductor Size: 500 KCMIL
• Maximum Conductor Size: 750 KCMIL
• Conductor Material: COPPER
• Number Of Screws: 2
• Catalog Description: LOCKTITE COPPER TWO-WAY FOR CONDUCTOR RANGE 500-750 KCMIL
• Category: Large Terminals & Connectors
• Full Technical Description: In Line Type; 3-1/8 Inch L X 1-1/2 Inch W X 2-1/16 Inch H Size; 500 kcmil min. Conductor Size; 750 kcmil Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Non Insulated Insulation Type; 2 Screw(S); Locktite. Brand; Inclusion Lock Washer
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121408
• UPC 12 Digit: 786210325170
• SKU Name: t&b 32517

Resources

• Manufacturer Spec Sheet
