T&B 327-TB 1-1/4" 90D Tite-Bite Connector

Overview

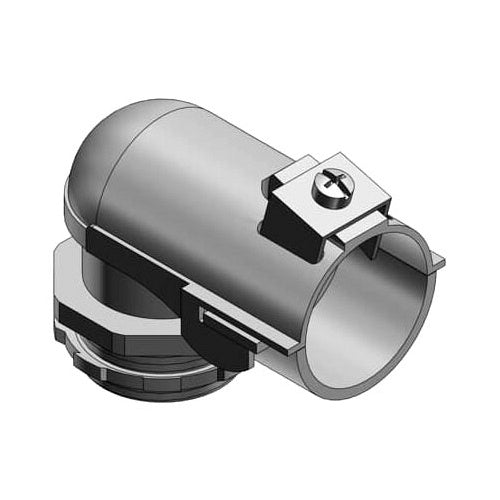

T&B 327-TB 1-1/4" 90D Tite-Bite Connector

Product Specifications

• UPC: 78621000327
• Installation: (1) Screw, Saddle
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Standard Package: 10
• Approval: UL 514B, CSA C22.2
• Catalog Number: 327-TB
• Brand Name: TITE-BITE[R]
• Type: 90 Deg
• Trade Size: 1-1/4 Inch
• Knockout Size: 1-1/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 1.562 to 1.75 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, 90 DEGREE BEND, TRADE SIZE 1-1/4 INCH, KNOCKOUT SIZE 1-1/4 INCH, CABLE RANGE 1.562 TO 1.750 INCH, MALLEABLE IRON WITH ZINC PLATING
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Electro Zinc Plated Malleable Iron Material; (1) Screw, Saddle Installation; UL 514B, CSA C22.2 Approval; 10 Standard Package; 1-1/4 Inch Trade Size; 1-1/4 Inch Knockout Size; 1.562 to 1.75 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; TITE-BITE[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210003276
• SKU Name: t&b 327tb
