Product information
Overview

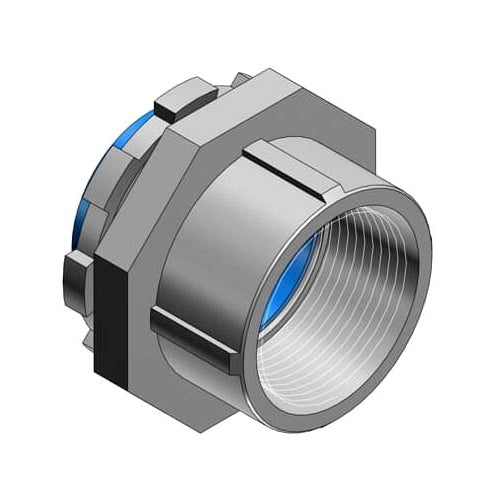

T&B 382-TB 6" Insulated Bullet Conduit Hub
Product Specifications
- UPC: 78621000382
- Approval: UL, CSA
- Used On: IMC/Rigid Conduit
- Additional Information: Temperature Rating 105 Deg C; Maximum Wall Thickness 1/2 Inch
- Catalog Number: 382-TB
- Type: Threaded Hub
- Throat Type: Nylon Insulated
- Trade Size: 6 Inch
- Diameter: 9-3/16 Inch
- Material: Electro Zinc Plated Malleable Iron Body, Neoprene O-Ring
- Constructional Feature: Watertight, Dusttight
- Standard Package: 1
- Catalog Description: 6 INCH HUB CONNECTOR, MALLEABLE IRON ELECTRO ZINC PLATED, NYLON INSULATED FOR USE WITH RIGID/IMC CONDUIT
- Category: Rigid Conduit Fittings - Steel
- Full Technical Description: Threaded Hub Type; Electro Zinc Plated Malleable Iron Body, Neoprene O-ring Material; Imc/Rigid Conduit Used on; UL, CSA Approval; 9-3/16 Inch Diameter; 1 Standard Package; 6 Inch Trade Size; Watertight, Dusttight; Nylon Insulated Throat Type; BULLET[R] Brand; Temperature Rating 105 Deg C; Maximum Wall Thickness 1/2 Inch
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Rigid/EMT Conduit Connector
- Unspsc: 39121311
- UPC 12 Digit: 786210003825
- SKU Name: t&b 382tb
