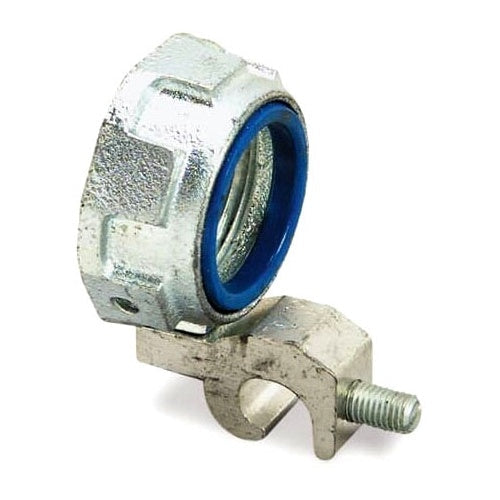

T&B 3993 2-1/2" Insulated Ground Bushing W/6-4/0 Range

Overview

T&B 3993 2-1/2" Insulated Ground Bushing W/6-4/0 Range

Product Specifications

• UPC: 78621003993
• Diameter: 3.516 INCH
• Height: 0.94 INCH
• Material: ELECTRO ZINC PLATED CAST MALLEABLE IRON
• Standard Package: 5
• Approval: UL, CSA
• Used On: RIGID CONDUIT/IMC
• Additional Information: INSULATOR MATERIAL THERMOPLASTIC; THROAT SIZE 2.222 INCH; TEMPERATURE RATING 150 DEG C
• Catalog Number: 3993
• Model: 3870
• Type: THREADED, SET SCREW
• Trade Size: 2-1/2 INCH
• Wire Size: 6 TO 4/0 AWG
• Lug Type: LAY-IN, TIN PLATED ALUMINUM
• Conductor Material: COPPER/ALUMINUM
• Throat Type: INSULATED
• Catalog Description: 2-1/2 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 6 TO 4/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.94 Inch; Rigid Conduit/Imc Used on; 6 to 4/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 3.516 Inch Diameter; 5 Standard Package; 2-1/2 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 2.222 Inch; Temperature Rating 150 Deg C; 3870 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210039930
• SKU Name: t&b 3993
