Product information
Overview

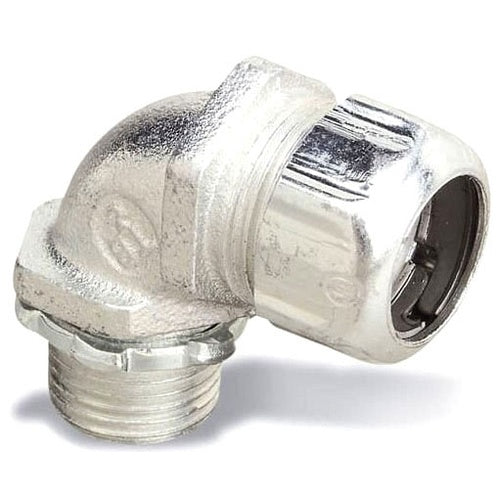

T&B 4234 1-1/2" 90D Short Elbow Iron Emt
Product Specifications
- UPC: 78621004234
- Used On: EMT Conduit
- Additional Information: Applicable Standard Federal Specification WF-408, NEMA FB1, NFPA 70; Thread Length 11/16 Inch
- Catalog Number: 4234
- Installation: Threaded Male
- Bend Angle: 90 Deg
- Trade Size: 1-1/2 Inch
- Size: 2-3/4 Inch Dia
- Constructional Feature: Rain Tight
- Material: Malleable Iron
- Approval: UL E16592, UL 514-B, CSA C22.2
- Catalog Description: 1-1/2 INCH SHORT ELBOW, MALLEABLE IRON FOR USE WITH EMT CONDUIT
- Category: Steel Uninsulated Short 90 Degree Compression Emt Connectors
- Full Technical Description: Malleable Iron Material; 2-3/4 Inch Dia Size; EMT Conduit Used on; Threaded Male Installation; UL E16592, UL 514-B, CSA C22.2 Approval; 1-1/2 Inch Trade Size; Rain Tight; 90 Deg Bend Angle; Applicable Standard Federal Specification Wf-408, NEMA FB1, NFPA 70; Thread Length 11/16 Inch
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Rigid/EMT Conduit Elbow Joint
- Unspsc: 39131717
- UPC 12 Digit: 786210042343
- SKU Name: t&b 4234
