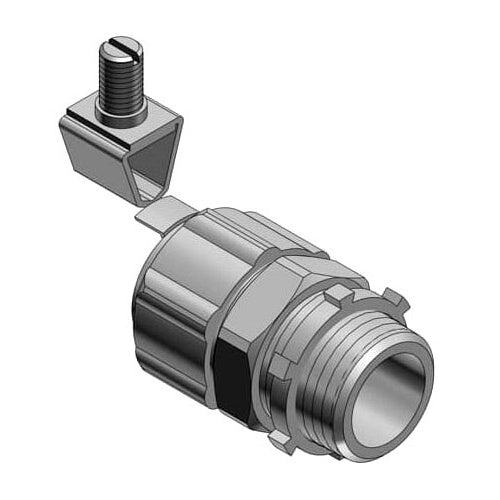

T&B 5233GR 3/4" Straight Liquidtight Non-Insulated Ground Connector Steel

Product Specifications

• UPC: 78621089984
• Used On: Liquid Tight Flexible Metallic Conduit
• Additional Information: RoHS Compliant; Ground Wire Size 14 to 4 AWG; Application Hazardous Location, Indoor/Outdoor, Wet Location; Applicable Standard IEC/EN 61386-1, NEMA FB-1, NFPA 70, Federal Specification A-A-50552
• Catalog Number: 5233GR
• Model: 5200GR
• Type: Straight, External Grounding
• Throat Type: Non-Insulated
• Trade Size: 3/4 Inch
• Material: Zinc Electroplated Chromate Coated Steel (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone), Tempered Cast (Lock Nut)
• Standard Package: 25
• Approval: UL, CSA, CE
• Catalog Description: 3/4 INCH STEEL EXTERNAL BONDING LIQUIDTIGHT CONNECTOR, NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, External Grounding Type; Zinc Electroplated Chromate Coated Steel (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone), Tempered Cast (Lock Nut) Material; Liquid Tight Flexible Metallic Conduit Used on; UL, CSA, CE Approval; 25 Standard Package; 3/4 Inch Trade Size; Non-Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Ground Wire Size 14 to 4 AWG; Application Hazardous Location, Indoor/Outdoor, Wet Location; Applicable Standard Iec/En 61386-1, NEMA FB-1, NFPA 70, Federal Specification A-A-50552; 5200GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210899848
• SKU Name: t&b 5233gr
