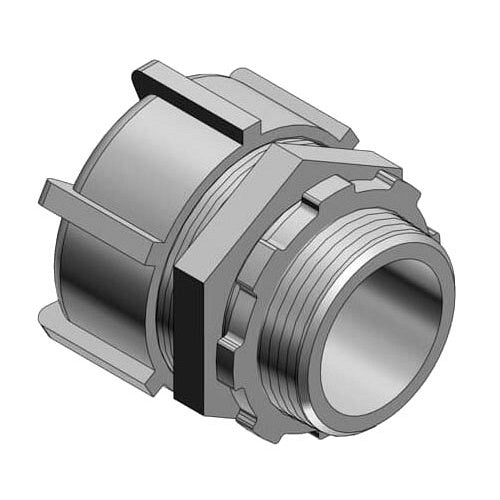

T&B 5237AL 2" Straight Liquidtight Non-Insulated Connector Aluminum

Overview

T&B 5237AL 2" Straight Liquidtight Non-Insulated Connector Aluminum

Product Specifications

• UPC: 78621080252
• Ul 514B, Csa C22.2: UL 514B, CSA C22.2
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION A-A-50552, NEMA FB-1, NFPA 70
• Catalog Number: 5237AL
• Model: Series 52
• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 2 Inch
• Material: Zinc Electroplated Chromate Coated Aluminum (Body/Gland/Ground Cone/Locknut)
• Standard Package: 5
• Used On: Liquidtight Flexible Metal Conduit
• Catalog Description: 2 INCH ALUMINUM LIQUIDTIGHT CONNECTOR, STRAIGHT, NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Chromate Coated Aluminum (Body/Gland/Ground Cone/Locknut) Material; Liquidtight Flexible Metal Conduit Used on; 5 Standard Package; 2 Inch Trade Size; Non-Insulated Throat Type; Applicable Standard Federal Specification A-A-50552, NEMA FB-1, NFPA 70; UL 514B, CSA C22.2 UL 514B, CSA C22.2; SERIES 52 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210802527
• SKU Name: t&b 5237al

Resources

• Product Spec Sheet
