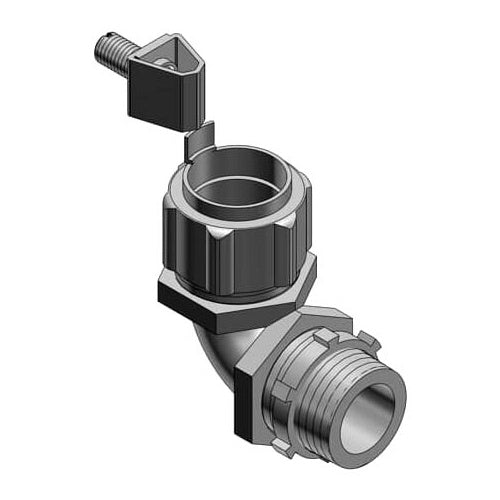

T&B 5251GR 3/8" 90D Liquidtight Non-Insulated Ground Connector Iron

Overview

T&B 5251GR 3/8" 90D Liquidtight Non-Insulated Ground Connector Iron

Product Specifications

• UPC: 78621089992
• Catalog Number: 5251GR
• Throat Type: NON INSULATED
• Trade Size: 3/8 INCH
• Material: ZINC PLATED STEEL
• Standard Package: 50 PER CARTON
• Used On: IMC/RIGID CONDUIT
• Installation: 90 DEG
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION A-A-50552, FEDERAL SPECIFICATION A-A-50553, FEDERAL SPECIFICATION WC-586, NEMA FB 1
• Catalog Description: 3/8 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT CONNECTOR, NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Zinc Plated Steel Material; Imc/Rigid Conduit Used on; 50 Per Carton Standard Package; 3/8 Inch Trade Size; Non Insulated Throat Type; Applicable Standard Federal Specification A-A-50552, Federal Specification A-A-50553, Federal Specification WC-586, NEMA FB 1; Installation 90 Deg
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/Emt Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210899923
• SKU Name: t&b 5251gr

Resources

• Manufacturer Spec Sheet
• Technical Drawing
