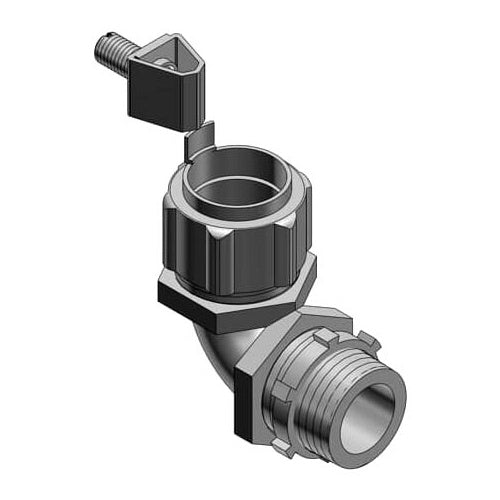

T&B 5259GR 3" 90D Liquidtight Non-Insulated Ground Connector Iron

Overview

T&B 5259GR 3" 90D Liquidtight Non-Insulated Ground Connector Iron

Product Specifications

• UPC: 78621089622
• Catalog Number: 5259GR
• Type: 90 DEG
• Throat Type: NON INSULATED
• Trade Size: 3 INCH
• Material: ZINC ELECTROPLATED CHROMATE COATED STEEL (BODY, GLAND, GROUND CONE, LOCKNUT), BRIGHT DIPPED COPPER LUG, SANTOPRENE/STAINLESS STEEL SEALING GASKET, STEEL STRAP, THERMOPLASTIC SEALING RING
• Approval: UL 514-B, CSA C22.2
• Used On: FLEXIBLE METALLIC LIQUID TIGHT CONDUIT
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION WF-406, NEMA; APPLICATION HAZARDOUS LOCATION, INDOOR, OUTDOOR
• Catalog Description: 3 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT CONNECTOR, FOR USE WITH FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Zinc Electroplated Chromate Coated Steel (Body, Gland, Ground Cone, Locknut), Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring Material; Flexible Metallic Liquid Tight Conduit Used on; UL 514-B, CSA C22.2 Approval; 3 Inch Trade Size; Non Insulated Throat Type; Applicable Standard Federal Specification Wf-406, NEMA; Application Hazardous Location, Indoor, Outdoor
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210896229
• SKU Name: t&b 5259gr
