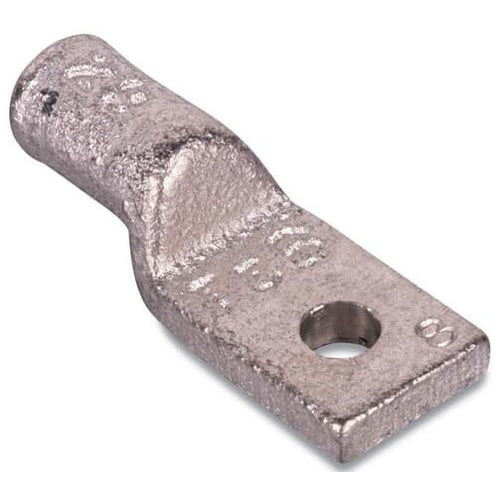

T&B 53118 Copper Tin Plated 1-Hole Lug Heavy-Duty Standard 500 1/2" Pink

Overview

T&B 53118 Copper Tin Plated 1-Hole Lug Heavy-Duty Standard 500 1/2" Pink

Product Specifications

• UPC: 78621053118
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 99
• Material: Electro Tin Plated Cast Copper
• Overall Length: 3.81 Inch
• Approval: UL, CSA
• Catalog Number: 53118
• Model: 531
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Standard, Straight
• Pad Size: 2 Inch L x 1.38 Inch W x 0.38 Inch Thk
• Number Of Pad Holes: 1
• Catalog Description: COPPER ONE-HOLE LUG - HEAVY-DUTY, STANDARD BARREL, BLIND END, MAX 35KV, WIRE SIZE 500 KCMIL, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 99, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Cast Copper Material; Pink Color; 3.81 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 500 kcmil Conductor Size; 1/2 Inch Stud Size; 99 Die Index; 2 Inch L X 1.38 Inch W X 0.38 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 531 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210531182
• SKU Name: t&b 53118
