T&B 53214

Overview

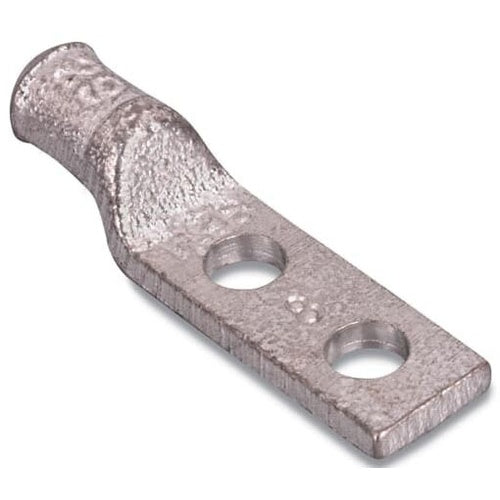

T&B 53214 Copper 2-Hole Heavy Duty Lug Standard Barrel 300 1/2 Blue

Product Specifications

• Catalog Number: 53214
• UPC / GTIN: 78621053214
• CATALOG DESCRIPTION: COPPER TWO-HOLE HEAVY-DUTY LUG, STANDARD BARREL, BLIND END, MAX 35KV, WIRE SIZE 300 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 76, DIE COLOR CODE BLUE
• Full Technical Description: Electrolytic Tin Plated Cast Copper Material; 4-9/16 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 300 kcmil (Code) Conductor Size; 1/2 Inch Stud Size; 76 Die Index; 3 Inch L X 1-3/16 Inch W X 5/16 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; COLOR-KEYED[R] Brand; 532 Model
• Manufacturer: THOMAS & BETTS
• Product Description: T&B 53214 Copper 2-Hole Heavy Duty Lug Standard Barrel 300 1/2 Blue
• UNSPSC: 39121405
• UPC 12 Digit: 786210532141
