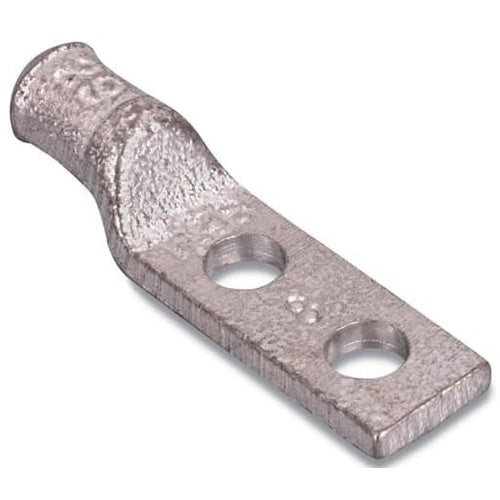

T&B 53223M 2-Hole Standard Barrel Lug 750 Wire 1/2" Bolt

Overview

T&B 53223M 2-Hole Standard Barrel Lug 750 Wire 1/2" Bolt

Product Specifications

• UPC: 78621086891
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: 112
• Material: Electro Tin Plated Cast Copper
• Overall Length: 5.31 Inch
• Approval: UL, CSA
• Catalog Number: 53223M
• Model: 532
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 750 KCMIL
• Barrel Type: Standard, Straight
• Pad Size: 3.5 Inch L x 1.63 Inch W x 0.03 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: CAST COPPER TWO-HOLE HEAVY DUTY LUG, STANDARD BARREL, BLIND END, MAX 35KV, 750 KCMIL WIRE, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 112, DIE COLOR CODE PURPLE
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Cast Copper Material; Purple Color; 5.31 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 750 kcmil Conductor Size; 1/2 Inch Stud Size; 112 Die Index; 3.5 Inch L X 1.63 Inch W X 0.03 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; 532 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210868912
• SKU Name: t&b 53223m
