Overview

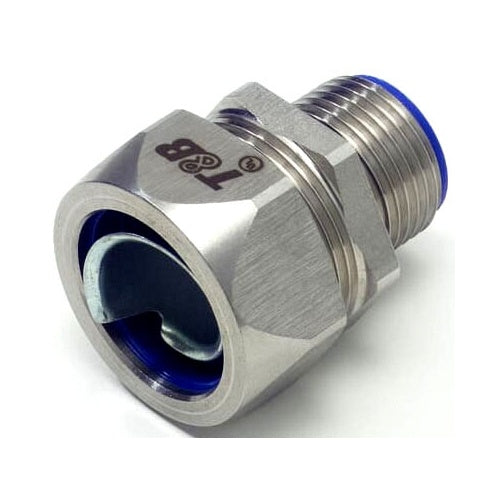

1-1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.68 Inches/68.07mm, Width 2.56 Inches/65.02mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone

Product Specifications

• Catalog Number: 5336SST6
• UPC: 786210080048
• Manufacturer: ABB
• Special Features: Stronger and More UV-resistant than Nonmetallic Fittings
• Application: Connects Flexible Metallic Liquidtight Conduit to a Box or Enclosure
• Material: 316 Stainless Steel with Duraplated Ground Cone
• Finish: None
• Color: Metallic
• NEMA Rating: 3, 3R, 4, 4X
• Insulation: Y
• Temperature Rating: 105 C
• Brand Name: T&B Liquidtight Fittings
• Standard: UL E23018, CSA
• Size: 1-1/2 Inch
• RoHS: RoHS3 Compliant
• REACH: REACH 253 Compliant
• TSCA: TSCA Section 6(h) Compliant
• CSA - CLASS: CSA
• CSA - File Number: 4484
• CSA - Class: 441202
• CSA - CCN: N/A
• CSA - Certificate Number: N/A
• CSA - Library Number: N/A
• UL - CLASS: UL
• UL - File Number: E23018
• UL - Class: N/A
• UL - CCN: DWTT
• UL - Certificate Number: N/A
• UL - Library Number: N/A
