Overview

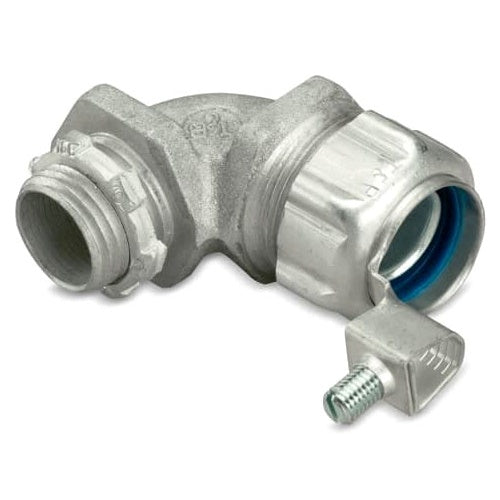

T&B 5351GR 3/8" Insulated Ground Liquidtight 90 Deg

Product Specifications

• UPC: 78621090007
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Applicable Standard Federal Specification A-A-50552/A-A-50553/WC-586, NEMA FB 1; Ground Wire Size 14 to 8 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used where External Bonding Jumper is Required Around Liquidtight Flexible Metal Con
• Catalog Number: 5351GR
• Model: 53
• Type: 90 Degree
• Throat Type: Insulated
• Trade Size: 3/8 Inch
• Material: Electro Zinc Plated Steel
• Standard Package: 50
• Approval: UL, CSA
• Catalog Description: 3/8 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTO
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Electro Zinc Plated Steel Material; Liquidtight Flexible Metallic Conduit Used on; UL, CSA Approval; 50 Standard Package; 3/8 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; Applicable Standard Federal Specification A-A-50552/A-A-50553/Wc-586, NEMA FB 1; Ground Wire Size 14 to 8 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used Where External Bonding Jumper is Required Around Liquidtight Flexible Metal Conduit, Flexible Raceway is Installed in Outdoor or Indoors Location Where Exposed to Continuous or Intermittent Moisture; 53 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210900070
• SKU Name: t&b 5351gr

Resources

• Manufacturer Spec Sheet
• Technical Drawing
