Overview

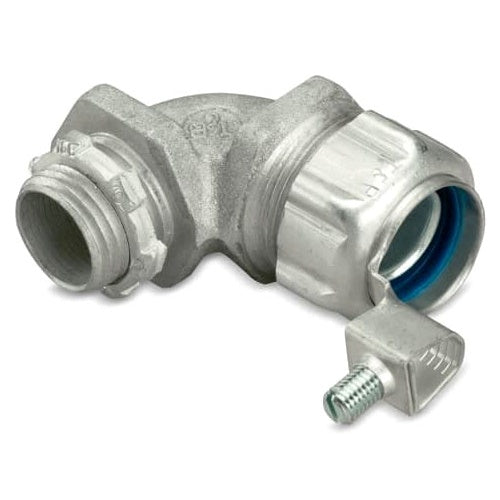

T&B 5358GR 2-1/2" Insulated Ground Liquidtight 90 Deg

Product Specifications

• UPC: 78621089637
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Applicable Standard Federal Specification A-A-50552, NEMA FB-1, NFPA 70; Application Hazardous Location, Indoor, Outdoor
• Catalog Number: 5358GR
• Model: 53
• Type: 90 Deg
• Throat Type: Thermoplastic Insulated
• Trade Size: 2-1/2 Inch
• Material: Zinc Electroplated Chromate Coated Malleable Iron Body/Gland/Ground Cone/Locknut, Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring
• Standard Package: 1
• Approval: UL 514-B, CSA C22.2
• Catalog Description: 2-1/2 INCH 90 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Zinc Electroplated Chromate Coated Malleable Iron Body/Gland/Ground Cone/Locknut, Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring Material; Liquidtight Flexible Metallic Conduit Used on; UL 514-B, CSA C22.2 Approval; 1 Standard Package; 2-1/2 Inch Trade Size; Thermoplastic Insulated Throat Type; REVOLVER[R] Brand; Applicable Standard Federal Specification A-A-50552, NEMA FB-1, NFPA 70; Application Hazardous Location, Indoor, Outdoor; 53 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210896373
• SKU Name: t&b 5358gr

Resources

• Manufacturer Spec Sheet
• Technical Drawing
