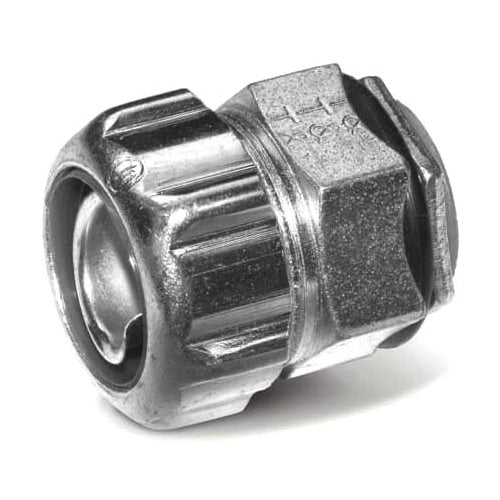

T&B 5365 1-1/4" Str Chase Liquidtight Insulated Connector Iron

Overview

T&B 5365 1-1/4" Str Chase Liquidtight Insulated Connector Iron

Product Specifications

• UPC: 78621005365
• Used On: Liquidtight Flexible Metallic Conduit
• Catalog Number: 5365
• Brand Name: CHASE[R]
• Type: Straight
• Throat Type: Nylon Insulated
• Trade Size: 1-1/4 Inch
• Material: Electro Zinc Plated Chromate Coated Steel Body/Gland/Ground Cone/Locknut, Thermoplastic Sealing Ring/Insulator, Buna-N/Stainless Steel Sealing Gasket
• Standard Package: 25
• Approval: UL 514-B, CSA C22.2
• Catalog Description: 1-1/4 INCH STRAIGHT MALLEABLE IRON CHASE LIQUIDTIGHT INSULATED CONNECTOR WITH ELECTRO-ZINC PLATING
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Chromate Coated Steel Body/Gland/Ground Cone/Locknut, Thermoplastic Sealing Ring/Insulator, Buna-N/Stainless Steel Sealing Gasket Material; Liquidtight Flexible Metallic Conduit Used on; UL 514-B, CSA C22.2 Approval; 25 Standard Package; 1-1/4 Inch Trade Size; Nylon Insulated Throat Type; CHASE[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053653
• SKU Name: t&b 5365

Resources

• Manufacturer Spec Sheet
