Overview

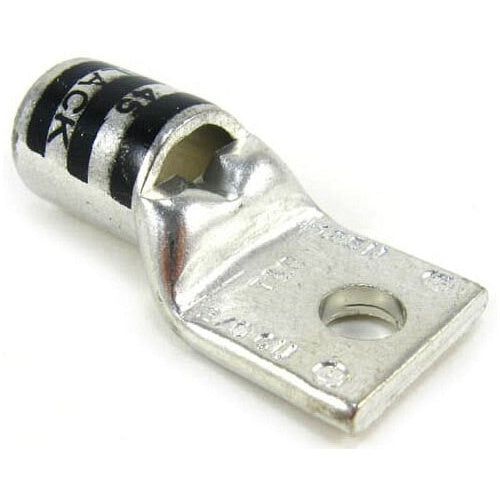

T&B 54158 2/0 Copper Standard Barrel 1-Hole 5/16" Bolt

Product Specifications

• UPC: 78621054158
• Number Of Pad Holes: 1
• Stud Size: 5/16 Inch
• Color: Black
• Die Index: 45
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 1.88 Inch
• Approval: UL, CSA
• Additional Information: Wire Strip Length 3/4 Inch; Includes Sight Hole
• Catalog Number: 54158
• Brand Name: Color-Keyed
• Model: 541
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2/0 AWG (Code), 125 (Navy, Flex), 1/0 AWG (Flex), 1/0 AWG (Weld, Flex), 275/24 (Flex), 427/0.0155 (Flex), 438 (Flex), 133/0.0282 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 0.88 Inch Length x 0.83 Inch Width x 0.13 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 2/0 AWG, 5/16 INCH BOLT SIZE, TIN PLATED, DIE CODE 45, DIE COLOR CODE BLACK
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Black Color; 1.88 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 2/0 AWG (Code), 125 (Navy, Flex), 1/0 AWG (Flex), 1/0 AWG (Weld, Flex), 275/24 (Flex), 427/0.0155 (Flex), 438 (Flex), 133/0.0282 (Flex) Conductor Size; 5/16 Inch Stud Size; 45 Die Index; 0.88 Inch Length X 0.83 Inch Width X 0.13 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Wire Strip Length 3/4 Inch; Includes Sight Hole; 541 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541587
• SKU Name: t&b 54158
