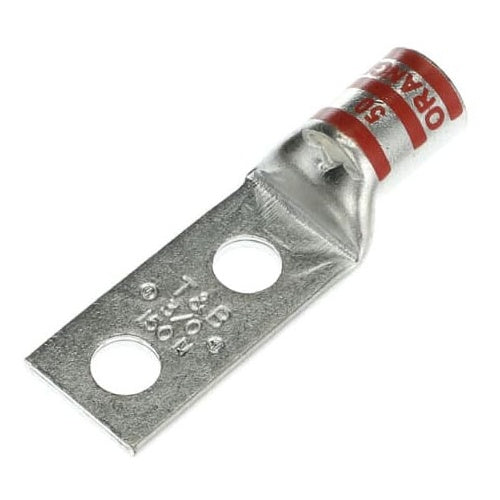

T&B 54211 3/0Awg Orange 2-Hole Copper Lug

Product Specifications

• UPC: 78621054211
• Stud Size: 3/8 Inch
• Color: Orange
• Die Index: 50
• Material: High Conductivity Electro Tin Plated Wrought Copper
• Overall Length: 2.94 Inch
• Approval: UL, CSA
• Additional Information: Includes Peep Hole
• Catalog Number: 54211
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 3/0 AWG (Code)
• Barrel Type: Standard, Straight
• Pad Size: 1.81 Inch Length x 0.94 Inch Width x 0.14 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 3/0 AWG, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE CODE 50, DIE COLOR CODE ORANGE
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Copper Material; Orange Color; 2.94 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 3/0 AWG (Code) Conductor Size; 3/8 Inch Stud Size; 50 Die Index; 1.81 Inch Length X 0.94 Inch Width X 0.14 Inch Thickness Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Standard, Straight Barrel Type; Includes Peep Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210542119
• SKU Name: t&b 54211
