Product information
Overview

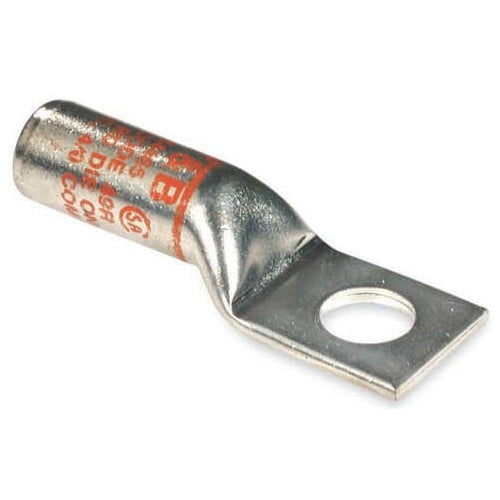

T&B 54470 Copper Tin Plated 1-Hole High-Voltage Lug Long Barrel 4/0 Purple
Product Specifications
- UPC: 78621054470
- Stud Size: 1/2 Inch
- Color: Purple
- Die Index: 54R
- Material: Tin Plated Copper
- Overall Length: 2.78 Inch
- Approval: UL, CSA
- Catalog Number: 54470
- Model: 544
- Voltage Rating: 600 V to 35 KV
- Conductor Material: Copper
- Conductor Size: 4/0 AWG
- Barrel Type: Long, Straight, Tapered
- Pad Size: 1 Inch W x 0.13 Inch Thk
- Number Of Pad Holes: 1
- Catalog Description: COPPER ONE-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 4/0 AWG, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 54R, DIE COLOR CODE PURPLE ROUNDING
- Category: Large Terminals & Connectors
- Full Technical Description: Tin Plated Copper Material; Purple Color; 2.78 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 4/0 AWG Conductor Size; 1/2 Inch Stud Size; 54R Die Index; 1 Inch W X 0.13 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight, Tapered Barrel Type; 544 Model
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Compression Cable Lug
- Unspsc: 39121405
- UPC 12 Digit: 786210544700
- SKU Name: t&b 54470
