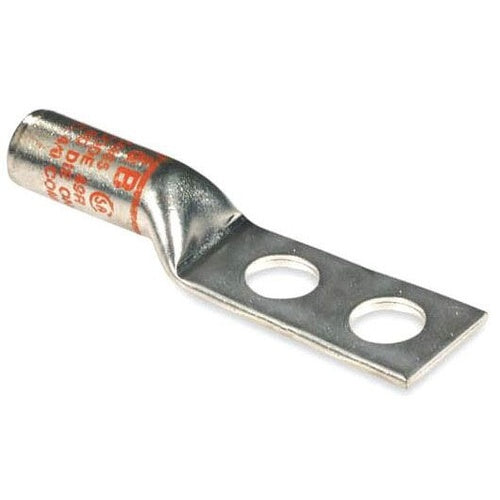

T&B 54487 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 750 Black

Overview

High durability for extended service life, Designed for optimal load distribution, Corrosion-resistant finish for enhanced longevity

Product Specifications

• UPC: 78621054487
• Pad Hole Spacing: 1.75 INCH
• Stud Size: 1/2 INCH
• Color: BLACK
• Die Index: 106R
• Material: TIN PLATED COPPER
• Overall Length: 6.13 INCH
• Approval: UL, CSA
• Catalog Number: 54487
• Model: 544
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 750 KCMIL
• Barrel Type: LONG, STRAIGHT, TAPERED
• Pad Size: 3 INCH L X 1.89 INCH W X 0.27 INCH THK
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 750 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 106R, BLACK ROUNDING
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Black Color; 6.13 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 750 kcmil Conductor Size; 1/2 Inch Stud Size; 106R Die Index; 3 Inch L X 1.89 Inch W X 0.27 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Tapered Barrel Type; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544878
• SKU Name: T&B 54487
