Product information
Overview

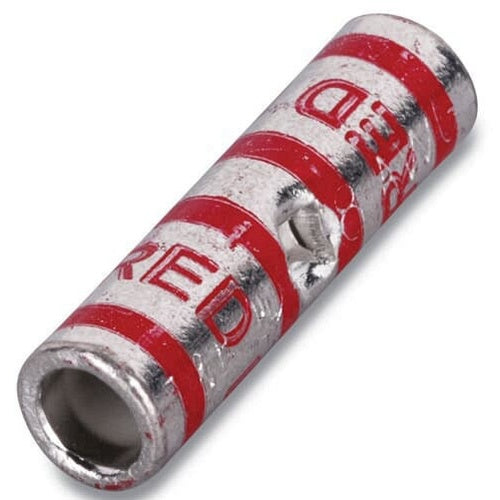

T&B 54506 2 Way Splice Connector No4
Product Specifications
- UPC: 78621054506
- Length: 1 Inch
- Outer Diameter: 0.37 Inch
- Body Material: Electro Tin Plated Wrot Copper
- Approval: UL, CSA
- Additional Information: Die Code 29; Strip Length 5/8 Inch
- Catalog Number: 54506
- Brand Name: Blackburn/Color-Keyed
- Type: 2-Way
- Voltage Rating: 600 Volt to 35 Kilovolt
- Conductor Size: 4 AWG (Code), 4 AWG (Flex), 91/24 (Flex), 133/0.0177 (Flex), 49/0.029 (Flex)
- Conductor Material: Copper
- Color Code: Gray
- Barrel Type: Standard
- Catalog Description: COPPER TWO-WAY SPLICE CONNECTOR, STANDARD BARREL, MAX 35KV, WIRE SIZE 4 AWG, DIE CODE 29, DIE COLOR CODE GRAY
- Category: Large Terminals & Connectors
- Full Technical Description: 2-Way Type; 1 Inch; 0.37 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 4 AWG (Code), 4 AWG (Flex), 91/24 (Flex), 133/0.0177 (Flex), 49/0.029 (Flex) Conductor Size; Gray Color Code; Standard Barrel Type; Die Code 29; Strip Length 5/8 Inch
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Compression Cable Splice
- Unspsc: 39121449
- UPC 12 Digit: 786210545066
- SKU Name: t&b 54506
