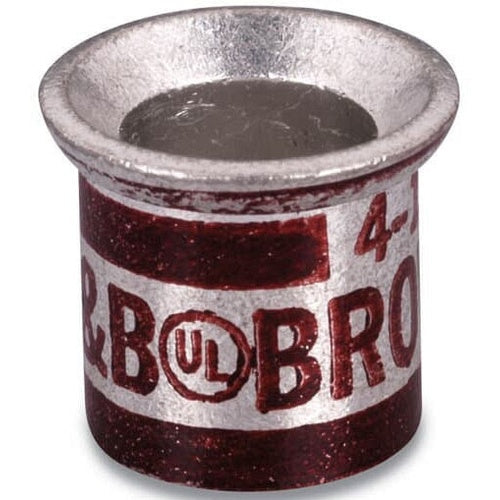

T&B 54620 8Awg Brown Copper Crimp Connector

Overview

T&B 54620 8Awg Brown Copper Crimp Connector

Product Specifications

• UPC: 78621054620
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Catalog Number: 54620
• Type: Butt
• Voltage Rating: 600 Volt
• Conductor Size: (1) 4 AWG, (2) 10 AWG Solid/Stranded
• Conductor Material: Copper
• Color Code: Brown
• Length: 0.417 Inch
• Outer Diameter: 0.475 Inch
• Catalog Description: COPPER CABLE JOINT, WIRE RANGE MIN: 3 #8 SOL OR STR, MAX: 1 #4 WITH 2 #10 SOL OR STR, TIN PLATED, BROWN DIE
• Category: Small Terminals & Connectors
• Full Technical Description: Butt Type; 0.417 Inch; 0.475 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; Electro Tin Plated Copper Body Material; (1) 4 AWG, (2) 10 AWG Solid/Stranded Conductor Size; Brown Color Code
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121452
• UPC 12 Digit: 786210546209
• SKU Name: t&b 54620

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
