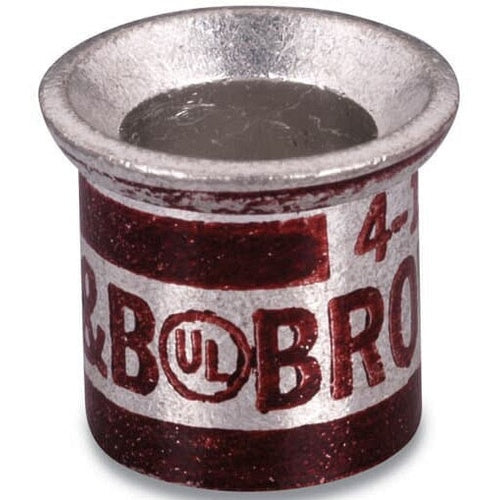

T&B 54640 4Awg Orange Copper Crimp Connector

Overview

T&B 54640 4Awg Orange Copper Crimp Connector

Product Specifications

• UPC: 78621054640
• Additional Information: Die Code 50
• Catalog Number: 54640
• Conductor Size: (3) 4 AWG Solid/Stranded to (3) 4 AWG with (2) 10 AWG Solid/Stranded
• Conductor Material: Copper
• Color Code: Orange
• Length: 0.762 Inch
• Outer Diameter: 0.695 Inch
• Body Material: Electro Tin Plated High Conductivity Copper
• Approval: UL, CSA
• Catalog Description: COPPER CABLE JOINT, WIRE RANGE MIN: 3 #4 SOL OR STR, MAX: 3 #4 WITH 2 #10 SOL OR STR, TIN PLATED, ORANGE DIE
• Category: Small Terminals & Connectors
• Full Technical Description: 0.762 Inch; 0.695 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; Electro Tin Plated High Conductivity Copper Body Material; (3) 4 AWG Solid/Stranded to (3) 4 AWG With (2) 10 AWG Solid/Stranded Conductor Size; Orange Color Code; Die Code 50
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121452
• UPC 12 Digit: 786210546407
• SKU Name: t&b 54640

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
