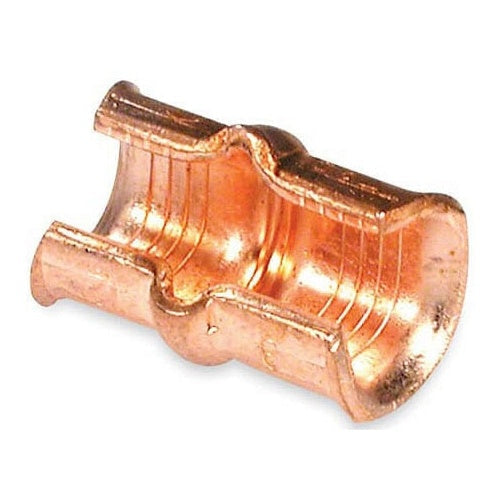

T&B 54725TP 5-3 Green Copper C-Tap

Overview

T&B 54725TP 5-3 Green Copper C-Tap

Product Specifications

• UPC: 78621006819
• Maximum Tap Conductor Size: 6 AWG SOLID/STRANDED, 4 AWG STRANDED
• Body Material: TIN PLATED WROUGHT HIGH CONDUCTIVITY COPPER
• Approval: UL, CSA
• Additional Information: COLOR CODE GREEN
• Catalog Number: 54725TP
• Brand Name: Color-Keyed[R]
• Voltage Rating: 600 V
• Shape: C
• Conductor Material: COPPER
• Minimum Run Conductor Size: 6 AWG SOLID/STRANDED
• Maximum Run Conductor Size: 4 AWG STRANDED
• Minimum Tap Conductor Size: 6 AWG SOLID/STRANDED, 4 AWG STRANDED
• Catalog Description: COPPER C-TAP FOR 600V APPLICATIONS, WIRE RANGE MAIN: 5-3, BRANCH 6-12, LENGTH 1-5/32 INCHES, HEIGHT 13/16 INCH, TIN PLATED, DIE COLOR CODE GREEN, DIE CODE 37
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Solid/Stranded min. Run Conductor Size; 4 AWG Stranded Max. Run Conductor Size; 6 AWG Solid/Stranded, 4 AWG Stranded min. Tap Conductor Size; 6 AWG Solid/Stranded, 4 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Tin Plated Wrought High Conductivity Copper Body Material; COLOR-KEYED[R] Brand; Color Code Green
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210068190
• SKU Name: t&b 54725tp
