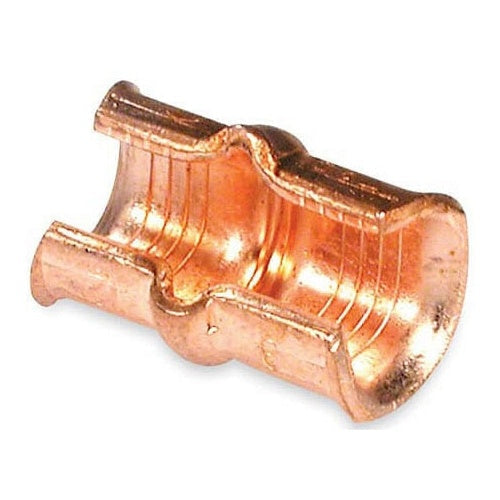

T&B 54745TP 1-2/0 Purple Copper C-Tap

Overview

T&B 54745TP 1-2/0 Purple Copper C-Tap

Product Specifications

• UPC: 78621088403
• Maximum Tap Conductor Size: 6 AWG SOLID/STRANDED, 1/0 AWG STRANDED
• Body Material: TIN PLATED WROUGHT HIGH CONDUCTIVITY COPPER
• Approval: UL, CSA
• Additional Information: COLOR CODE PURPLE
• Catalog Number: 54745TP
• Brand Name: Color-Keyed[R]
• Voltage Rating: 600 V
• Shape: C
• Conductor Material: COPPER
• Minimum Run Conductor Size: 2 AWG STRANDED
• Maximum Run Conductor Size: 2/0 AWG STRANDED
• Minimum Tap Conductor Size: 12 AWG SOLID/STRANDED, 4 AWG STRANDED
• Catalog Description: COPPER C-TAP, 600V, WIRE RANGE-MAIN: 2/0-1, BRANCH 1-12, LENGTH 1-11/16, HEIGHT 1-1/16, TIN PLATED, DIE CODE 54, DIE COLOR PURPLE
• Category: Large Terminals & Connectors
• Full Technical Description: 2 AWG Stranded min. Run Conductor Size; 2/0 AWG Stranded Max. Run Conductor Size; 12 AWG Solid/Stranded, 4 AWG Stranded min. Tap Conductor Size; 6 AWG Solid/Stranded, 1/0 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Tin Plated Wrought High Conductivity Copper Body Material; COLOR-KEYED[R] Brand; Color Code Purple
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210884035
• SKU Name: t&b 54745tp
