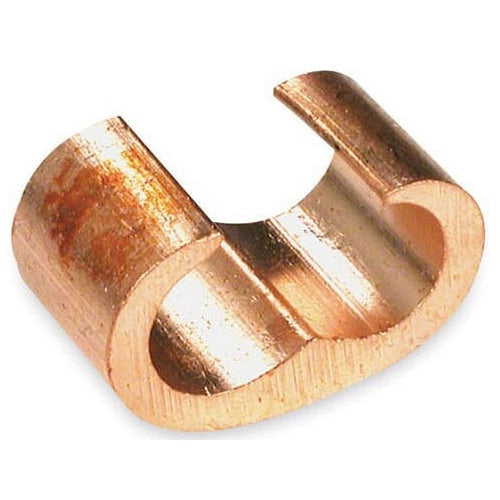

T&B 54760TP 2/0-250 Brown Copper C-Tap

Overview

T&B 54760TP 2/0-250 Brown Copper C-Tap

Product Specifications

• UPC: 78621088405
• Minimum Tap Conductor Size: 8 AWG
• Maximum Tap Conductor Size: 4/0 AWG
• Body Material: TIN PLATED WROUGHT HIGH CONDUCTIVITY COPPER
• Approval: UL, CSA
• Additional Information: COLOR CODE BROWN
• Catalog Number: 54760TP
• Brand Name: Color-Keyed[R]
• Voltage Rating: 600 V
• Shape: C
• Number Of Taps: 1
• Conductor Material: COPPER
• Minimum Run Conductor Size: 2/0 AWG
• Maximum Run Conductor Size: 250 MCM
• Catalog Description: COPPER C-TAP, WIRE RANGE MAIN: 2/0-250, BRANCH 4/0-8, TIN-PLATED, DIE CODE 87H, DIE COLOR CODE BROWN, NUMBER OF CRIMPS 2
• Category: Large Terminals & Connectors
• Full Technical Description: 2/0 AWG min. Run Conductor Size; 250 MCM Max. Run Conductor Size; 8 AWG min. Tap Conductor Size; 4/0 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Tin Plated Wrought High Conductivity Copper Body Material; 1 Tap(S); COLOR-KEYED[R] Brand; Color Code Brown
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210884059
• SKU Name: t&b 54760tp
