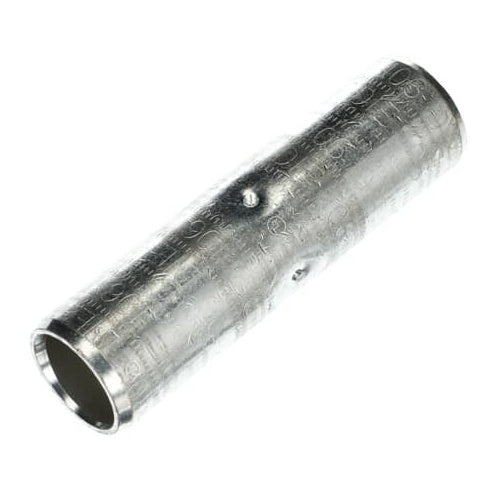

T&B 54823 750Mcm 2-Way Connector

Overview

T&B 54823 750Mcm 2-Way Connector

Product Specifications

• UPC: 78621054823
• Outer Diameter: 1.34 Inch
• Body Material: High Conductivity Electro Tin Plated Wrought Copper
• Approval: UL, CSA
• Additional Information: Die Code 106
• Catalog Number: 54823
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 750 KCMIL (Code), 535 KCMIL (1325/24 Flex)
• Conductor Material: Copper
• Color Code: Black
• Barrel Type: Long
• Length: 4.75 Inch
• Catalog Description: COPPER TWO-WAY SPLICE, LONG BARREL, MAX 35KV, WIRE SIZE 750 KCMIL, LENGTH 4.75 INCHES (120.65MM), TIN PLATED, DIE CODE 106
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 4.75 Inch; 1.34 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; High Conductivity Electro Tin Plated Wrought Copper Body Material; 750 kcmil (Code), 535 kcmil (1325/24 Flex) Conductor Size; Black Color Code; Long Barrel Type; Die Code 106
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210548234
• SKU Name: t&b 54823
