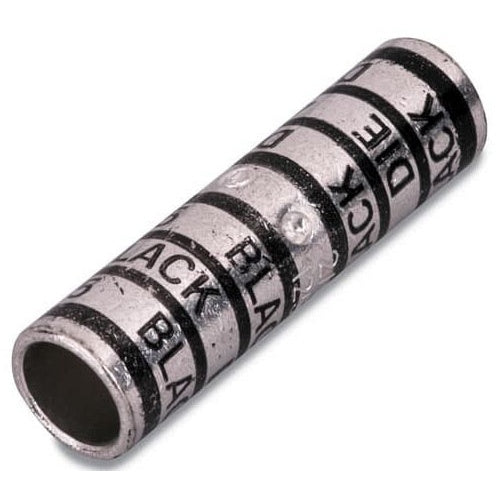

T&B 54828 2-Way Copper Splice Connector Long Barrel 1000

Overview

T&B 54828 2-Way Copper Splice Connector Long Barrel 1000

Product Specifications

• UPC: 78621054828
• Body Material: High Conductivity Electro Tin Plated Wrought Copper
• Approval: UL, CSA
• Additional Information: Die Code 125
• Catalog Number: 54828
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 1000 KCMIL (Code)
• Conductor Material: Copper
• Barrel Type: Long
• Length: 5.63 Inch
• Outer Diameter: 1.56 Inch
• Catalog Description: COPPER TWO-WAY SPLICE, LONG BARREL, MAX 35KV, 1000 KCMIL, LENGTH 5.63 INCHES (143MM), TIN PLATED, DIE CODE 125, DIE COLOR CODE N/A
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 5.63 Inch; 1.56 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; High Conductivity Electro Tin Plated Wrought Copper Body Material; 1000 kcmil (Code) Conductor Size; Long Barrel Type; Die Code 125
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210548289
• SKU Name: t&b 54828

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
