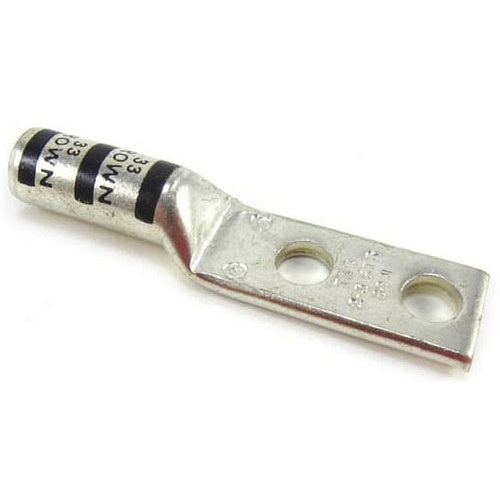

T&B 54856BE 2-Hole Long Barrel 5/16-3/4 No2

Product Specifications

• UPC: 78621089799
• Stud Size: 5/16 Inch
• Color: Brown
• Die Index: 33
• Material: High Conductivity Electro Tin Plated Wrought Copper
• Overall Length: 2.78 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54856BE
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 3 to 2 AWG (Code)
• Barrel Type: Long, Straight
• Pad Size: 1.63 Inch Length x 0.59 Inch Width x 0.11 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 3/4 Inch
• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE #2 AWG, 5/16 INCH BOLT SIZE, 3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 33, DIE COLOR CODE BROWN
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Copper Material; Brown Color; 2.78 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 3 to 2 AWG (Code) Conductor Size; 5/16 Inch Stud Size; 33 Die Index; 1.63 Inch Length X 0.59 Inch Width X 0.11 Inch Thickness Pad Size; 2 Pad Hole(S); 3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Includes Blind End Inspection Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210897998
• SKU Name: t&b 54856be
