T&B 54860be

Overview

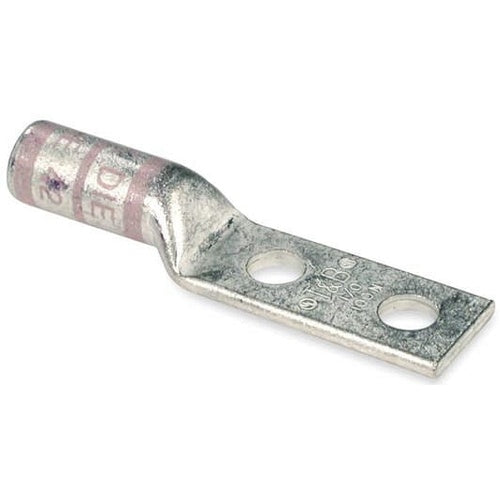

T&B 54860BEUF 54860Be 45 Degree Bend

Product Specifications

• Catalog Number: 54860BEUF
• UPC / GTIN: 78620991530
• CATALOG DESCRIPTION: COPPER TWO-HOLE LUG, 45 DEGREE BEND LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 1/0 AWG, 5/16 INCH BOLT SIZE, 7/8 INCH HOLE SPACING, TIN PLATED, DIE CODE 42, DIE COLOR CODE PINK
• Full Technical Description: Electro Tin Plated High Conductivity Wrought Copper Material; Pink Color; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG (Code); 1 AWG, 225/24 Flex Class G/H/I/K/M Conductor Size; 5/16 Inch Stud Size; 42 Die Index; 1.63 Inch L X 0.75 Inch W X 0.13 Inch Thk Pad Size; 2 Pad Hole(S); 0.88 Inch Pad Hole Spacing; 45 Deg Long Barrel Type; COLOR-KEYED[R] Brand; With Blind End
• Manufacturer: THOMAS & BETTS PRODUCTS
• Product Description: T&B 54860BEUF 54860Be 45 Degree Bend
• UNSPSC: 39121405
• UPC 12 Digit: 786209915306
