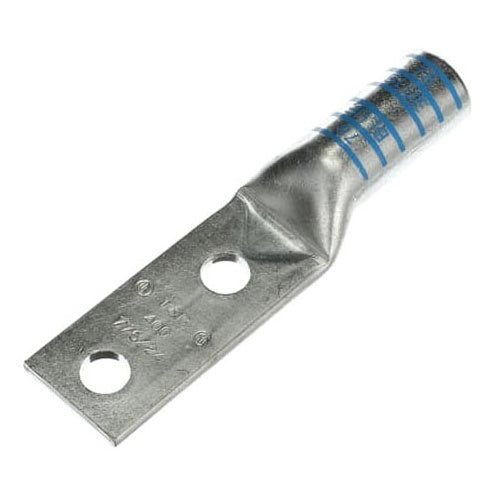

T&B 54874BE Copper Tin Plated 2-Hole Lug Long Barrel 400 1/2B Blue

Overview

T&B 54874BE Copper Tin Plated 2-Hole Lug Long Barrel 400 1/2B Blue

Product Specifications

• UPC: 78621089808
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Blue
• Die Index: 76
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 5.51 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54874BE
• Brand Name: Color-Keyed
• Model: 548
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 400 KCMIL (Code), 313 KCMIL (Flex), 775/24 (Flex)
• Barrel Type: Long, Straight
• Pad Size: 3 Inch Length x 1.41 Inch Width x 0.17 Inch Thickness
• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 400 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 76, DIE COLOR CODE BLUE
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Blue Color; 5.51 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 400 kcmil (Code), 313 kcmil (Flex), 775/24 (Flex) Conductor Size; 1/2 Inch Stud Size; 76 Die Index; 3 Inch Length X 1.41 Inch Width X 0.17 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Includes Blind End Inspection Hole; 548 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210898087
• SKU Name: t&b 54874be
