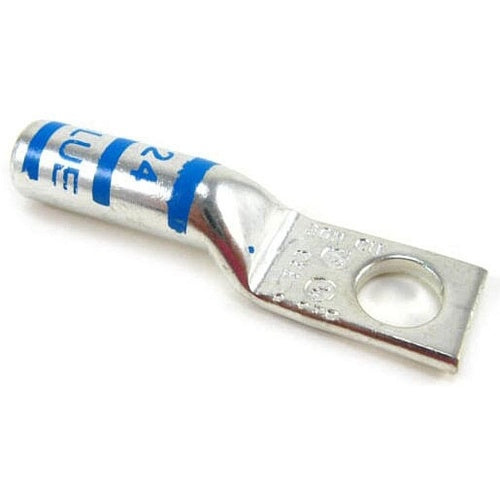

T&B 54904BE Copper Tin Plated 1-Hole Lug Long Barrel No6 No10B Blue

Overview

T&B 54904BE Copper Tin Plated 1-Hole Lug Long Barrel No6 No10B Blue

Product Specifications

• UPC: 78621019022
• Stud Size: #10
• Color: Blue
• Die Index: 24
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 1.65 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54904BE
• Model: 549
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 6 AWG (Code), 24.6 KCMIL (Flex), 61/24 (Flex)
• Barrel Type: Long, Straight
• Pad Size: 0.65 Inch L x 0.44 Inch W x 0.08 Inch Thk
• Number Of Pad Holes: 1
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE #6 AWG, #10 BOLT SIZE, TIN PLATED, DIE CODE 24, DIE COLOR CODE BLUE
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Blue Color; 1.65 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG (Code), 24.6 kcmil (Flex), 61/24 (Flex) Conductor Size; #10 Stud Size; 24 Die Index; 0.65 Inch L X 0.44 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Blind End Inspection Hole; 549 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210190228
• SKU Name: t&b 54904be
