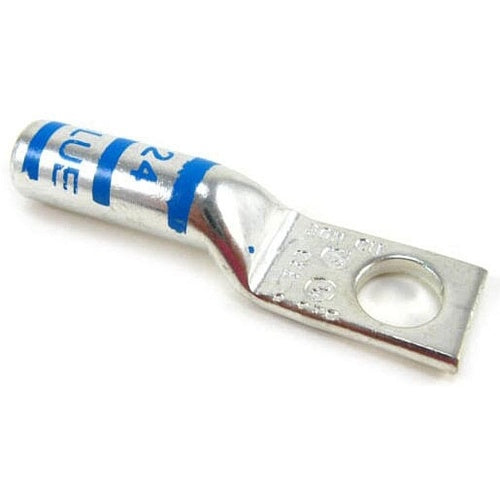

T&B 54905BE 1-Hole Long Barrel 1/4 Hole No6

Overview

T&B 54905BE 1-Hole Long Barrel 1/4 Hole No6

Product Specifications

• UPC: 78621089009
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Blue
• Die Index: 24
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 1.65 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54905BE
• Brand Name: Color-Keyed
• Model: 549
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG (Code), 24.6 KCMIL (61/24 Flex)
• Barrel Type: Long, Straight
• Pad Size: 0.65 Inch Length x 0.44 Inch Width x 0.08 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, MAX 35KV, WIRE SIZE #6 AWG, 1/4 INCH BOLT SIZE, TIN PLATED, DIE CODE 24, DIE COLOR CODE BLUE
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Blue Color; 1.65 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 6 AWG (Code), 24.6 kcmil (61/24 Flex) Conductor Size; 1/4 Inch Stud Size; 24 Die Index; 0.65 Inch Length X 0.44 Inch Width X 0.08 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Blind End Inspection Hole; 549 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210890098
• SKU Name: t&b 54905be
