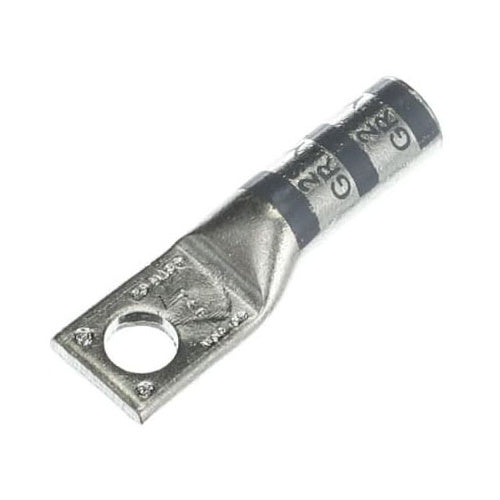

T&B 54906BE Copper Tin Plated 1-Hole Lug Long Barrel No4 1/4B Gray

Product Specifications

• UPC: 78621089010
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Gray
• Die Index: 29
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 1.7 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54906BE
• Brand Name: Color-Keyed
• Model: 549
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4 AWG (Code), 36.7 KCMIL (Flex), 91/24 (Flex)
• Barrel Type: Long, Straight
• Pad Size: 0.65 Inch Length x 0.52 Inch Width x 0.1 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE #4 AWG, 1/4 INCH BOLT SIZE, TIN PLATED, DIE CODE 29, DIE COLOR CODE GRAY
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Gray Color; 1.7 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4 AWG (Code), 36.7 kcmil (Flex), 91/24 (Flex) Conductor Size; 1/4 Inch Stud Size; 29 Die Index; 0.65 Inch Length X 0.52 Inch Width X 0.1 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Blind End Inspection Hole; 549 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210890104
• SKU Name: t&b 54906be
