Overview

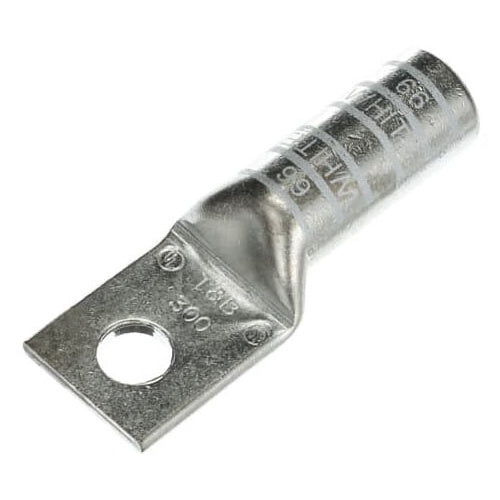

T&B 54914BE Copper Tin Plated 1-Hole Lug Long Barrel 300 1/2B White

Product Specifications

• UPC: 78621089818
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: White
• Die Index: 66
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 3.5 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54914BE
• Brand Name: Color-Keyed
• Model: 549
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 300 KCMIL (Code)
• Barrel Type: Long, Straight
• Pad Size: 1.25 Inch Length x 1.25 Inch Width x 0.15 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 300 KCMIL, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 66, DIE COLOR CODE WHITE
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; White Color; 3.5 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 300 kcmil (Code) Conductor Size; 1/2 Inch Stud Size; 66 Die Index; 1.25 Inch Length X 1.25 Inch Width X 0.15 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Blind End Inspection Hole; 549 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210898186
• SKU Name: t&b 54914be

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
