Overview

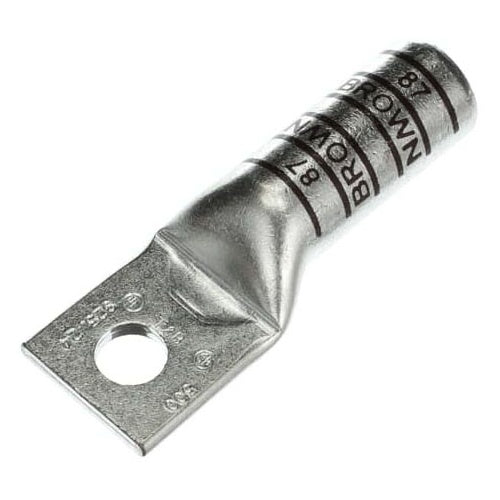

T&B 54919BE Copper Tin Plated 1-Hole Lug Long Barrel 500 5/8B Brown

Product Specifications

• UPC: 78621019479
• Stud Size: 5/8 Inch
• Color: Brown
• Die Index: 87
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 4.57 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54919BE
• Model: 549
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL (Code), 373 (Flex), 925/24 (Flex)
• Barrel Type: Long, Straight
• Pad Size: 1.58 Inch L x 1.61 Inch W x 0.22 Inch Thk
• Number Of Pad Holes: 1
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 500 KCMIL, 5/8 INCH BOLT SIZE, TIN PLATED, DIE CODE 87, DIE COLOR CODE BROWN
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Brown Color; 4.57 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 500 kcmil (Code), 373 (Flex), 925/24 (Flex) Conductor Size; 5/8 Inch Stud Size; 87 Die Index; 1.58 Inch L X 1.61 Inch W X 0.22 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Blind End Inspection Hole; 549 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210194790
• SKU Name: t&b 54919be
