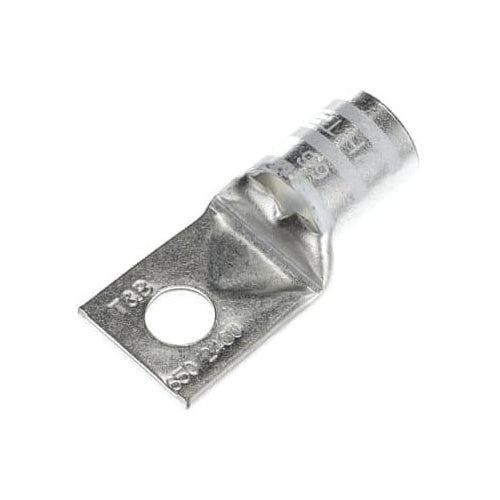

T&B 54949BE Copper 1-Hole Long Barrel 1/0 Wire, 5/16 Bolt

Overview

T&B 54949BE Copper 1-Hole Long Barrel 1/0 Wire, 5/16 Bolt

Product Specifications

• UPC: 78621019027
• Color: Pink
• Die Index: 42
• Material: High Conductivity Electro Tin Plated Wrought Copper
• Overall Length: 2.18 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54949BE
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1/0 AWG (Code)
• Barrel Type: Long, Straight
• Pad Size: 0.88 Inch Length x 0.75 Inch Width x 0.13 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/16 Inch
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, TONGUE LENGTH 0.88 INCH, MAX 35KV, WIRE SIZE 1/0 AWG, 5/16 INCH BOLT SIZE, TIN PLATED, DIE CODE 42, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Copper Material; Pink Color; 2.18 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 1/0 AWG (Code) Conductor Size; 5/16 Inch Stud Size; 42 Die Index; 0.88 Inch Length X 0.75 Inch Width X 0.13 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Blind End Inspection Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210190273
• SKU Name: t&b 54949be
