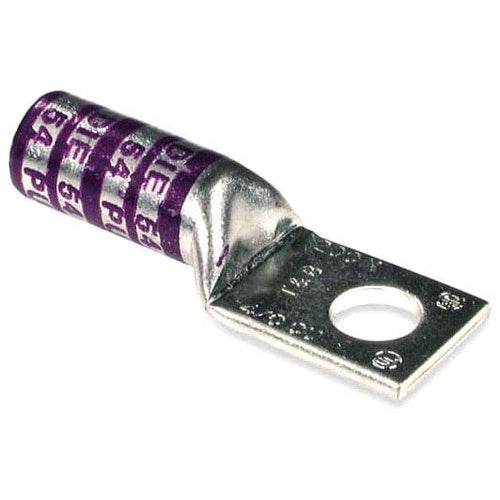

T&B 54979BE 700 Long Barrel

Overview

T&B 54979BE 700 Long Barrel

Product Specifications

• UPC: 78620987368
• Stud Size: 1/2 INCH
• Color: PINK
• Die Index: 99
• Material: ELECTRO TIN PLATED HIGH CONDUCTIVITY WROUGHT COPPER
• Overall Length: 4.4 INCH
• Approval: UL, CSA
• Additional Information: WITH BLIND END
• Catalog Number: 54979BE
• Brand Name: Color-Keyed[R]
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 535 KCMIL FLEX CLASS G/H/I/K/M
• Barrel Type: LONG
• Pad Size: 1.25 INCH L X 1.8 INCH W X 0.24 INCH THK
• Number Of Pad Holes: 1
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 535KCMIL, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 99H, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated High Conductivity Wrought Copper Material; Pink Color; 4.4 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 535 kcmil Flex Class G/H/I/K/M Conductor Size; 1/2 Inch Stud Size; 99 Die Index; 1.25 Inch L X 1.8 Inch W X 0.24 Inch Thk Pad Size; 1 Pad Hole(S); Long Barrel Type; COLOR-KEYED[R] Brand; With Blind End
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786209873682
• SKU Name: t&b 54979be

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
