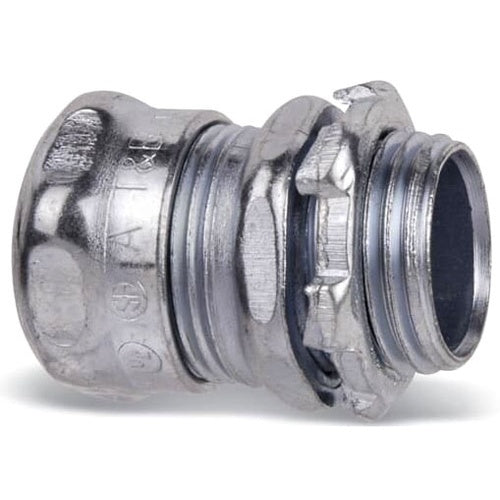

T&B 5521-TB 1-1/2" Emt Compress Connector Steel Ezinc

Overview

T&B 5521-TB 1-1/2" Emt Compress Connector Steel Ezinc

Product Specifications

• UPC: 78621005521
• Approval: UL 514-B, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1, NFPA 70; Application to Connect and Effectively Bond Electrical Metallic Tubing to a Box or Enclosure, to Provide a Connection Between Tubing and the Connector, and to Couple Ends of Tubing
• Catalog Number: 5521-TB
• Type: Compression
• Trade Size: 1-1/2 Inch
• Diameter: 2-5/16 Inch
• Length: 2-9/16 Inch
• Material: Electro Zinc Plated Chromate Coated Steel
• Constructional Feature: Rain Tight
• Standard Package: 25
• Catalog Description: 1-1/2 INCH COMPRESSION CONNECTOR, STEEL ELECTRO ZINC PLATED FOR USE WITH EMT CONDUIT
• Category: Steel Insulated Straight Compression Emt Connectors
• Full Technical Description: Compression Type; Electro Zinc Plated Chromate Coated Steel Material; 2-9/16 Inch; EMT Conduit Used on; UL 514-B, CSA C22.2 Approval; 2-5/16 Inch Diameter; 25 Standard Package; 1-1/2 Inch Trade Size; Rain Tight; Applicable Standard NEMA FB-1, NFPA 70; Application to Connect and Effectively Bond Electrical Metallic Tubing to A Box or Enclosure, to Provide A Connection Between Tubing and the Connector, and to Couple Ends of Tubing
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 786210055213
• SKU Name: t&b 5521tb

Resources

• Manufacturer Spec Sheet
