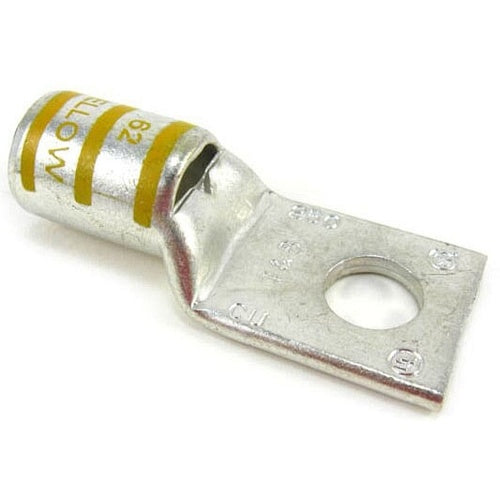

T&B 58163 4/0 Weld Copper Standard Barrel 1-Hole 3/8" Bolt

Overview

T&B 58163 4/0 Weld Copper Standard Barrel 1-Hole 3/8" Bolt

Product Specifications

• UPC: 78621058163
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Yellow
• Die Index: 62
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 2.38 Inch
• Approval: UL, CSA
• Catalog Number: 58163
• Brand Name: Color-Keyed
• Model: 581
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 222 KCMIL (Flex), 4/0 AWG (Weld, Flex), 550/24 (Flex), 133/0.0399 (Flex), 259/0.0286 (Flex), 637/0.0183 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 0.93 Inch Length x 1.25 Inch Width x 0.15 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 4/0 WELD, 3/8 INCH BOLT SIZE, TIN PLATED, DIE CODE 62, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Yellow Color; 2.38 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 222 kcmil (Flex), 4/0 AWG (Weld, Flex), 550/24 (Flex), 133/0.0399 (Flex), 259/0.0286 (Flex), 637/0.0183 (Flex) Conductor Size; 3/8 Inch Stud Size; 62 Die Index; 0.93 Inch Length X 1.25 Inch Width X 0.15 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 581 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210581637
• SKU Name: t&b 58163
